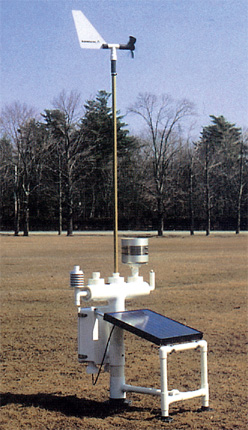

자동 기상 관측기   S-12

◈  용   도

• 대기 기상(온도, 습도, 풍향, 풍속, 강우량, 기압등) 측정에 사용
• 근,중거리에 측정기 설치시 사용

◈  특   징

• 실외의 대기 기상 상태를 실내에서 자동 표시 가능
• 측정 자료 Down load가 용이하고 EXCEL Program을 이용하여 도표 작성 용이

◈  SPECIFICATIONS Sensor Range Accuracy Resolution Wind Speed 0∼75m/s ±1.0% 0.1m/s Wind Direction 0∼360° ±1.0° 1.0° Temperature -40℃∼+65℃ ±0.1℃ 0.1℃ Humidity 0∼100% RH ±2.0% 0.1% Rainfall 0∼∞ ±0.5% 0.25 mm Barometer 910∼1,100 mmbar ±1.0 mmbar 0.1 mmbar Derived Parameter Dew Point, Wind Chill, Wind Speed Average, Wind Direction Average Data Logger/Controller Output RS 232 C Serial Output (optional 4-20 ma. or other analog output on request). Baud Rate From 300 to 9600 baud Output Interval From once a minute to once an hour(user selectable) Display 16 Digit-two line Alphanumeric back-lighted LCD Power Input Voltage 120/240 VAC 50/60 Hz. or 12 VDC Backup Battery 6 Volt Gel Cel with built-in charger Size 228(H)×305(W)×89(D) mm ◈  CONFIGURATIONS Data Logger S-12(128K) 1 ea Wind Speed & Direction Sensor 1 ea Temp & Relative Humidity Sensor 1 ea Precipitation Gauge 1 ea Barometer Sensor 1 ea Monopod 3 m Mast 1 ea 12-15 Conductor Cable 30m 1 ea DOS monitoring Software 1 ea RS 232 Cable 1 ea ◈  OPTIONAL ACCESSORIES Evaporation Sensor 1 ea Leaf Wetness Sensor 1 ea Solar Radiation Sensor 1 ea Hours Of Sunlight Sensor 1 ea Water Level Sensor 1 ea Snow Depth Sensor 1 ea
